Circuit board charging station 220AC, 230ACX, 260ACX, 265ACX

€107.90

592 90 96-01 - Circuitboard charging station

The circuit board is one of the components that can be damaged by events such as lightning. The robot will often display the error message "no loop signal," even though the LED shows a steady green light. In this case, try disconnecting one of the boundary wires; when you do this, the LED should start blinking green. If it doesn’t, the circuit board is likely faulty.
Don’t forget to pair the robotic lawnmower after replacing the circuit board. Do this by placing it in the charging station and changing the PIN code (you can use the same PIN code as before).

Replacing 544 45 41-05 / 544 45 41-04 / 584 82 20-02 / 578 78 85-01 / 578 78 84-01 /544 45 41-02

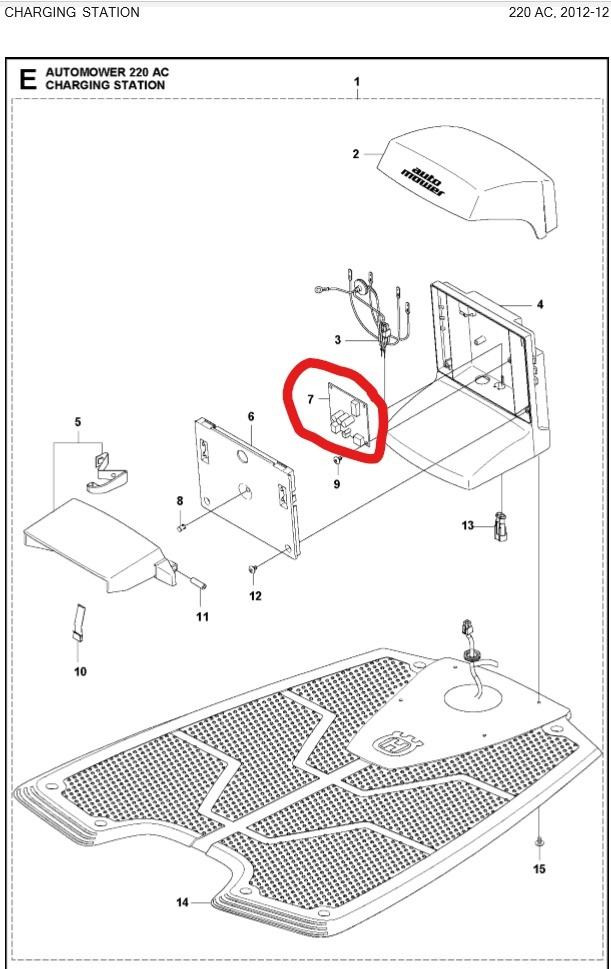

Fits all Generation 2 mowers with the newer charging plate, see image 3. For example, Automower 220AC, 230ACX, Gardena R160.
